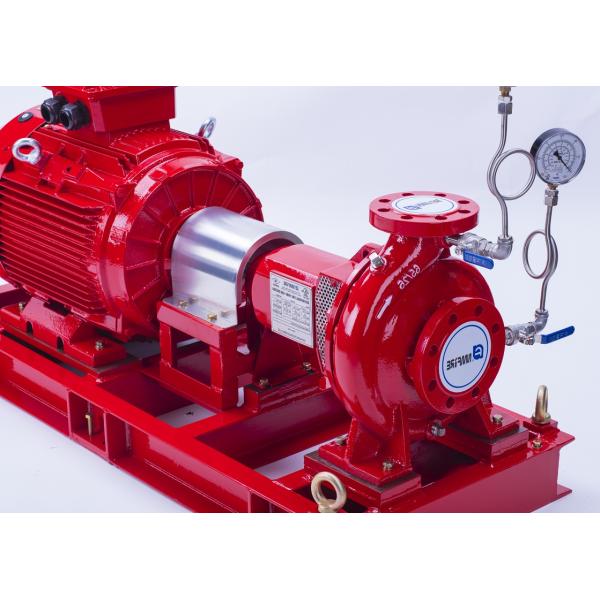

End Suction Centrifugal Pump Set 750GPM 142PSI Eaton Controller Fire Pump set centrifugal fire pump UL FM approved
Product Details
| Motor Pump Set UL LISTED |
| NM Fire End Suction Pump |
| Model | ESFESF80/20(UL/FM) | This Electric pump Set includes the pump(air relieve vlave , inlet & outlet gauges) , Motor, Control System,Commonbase .
Please contact me if you need other accessories.
|
| Capacity | 750GPM |
| Head | 142PSI |
| RPM | 3550rpm |
| Material: | |
| Casing | Ductile Cast iron |
| Impeller | Bronze |
| Shaft | SS420 |
| Seal | Gland packing |
| Wear ring | Bronze |
| Bearing | SKF |
| Engine: TECHTOP&UL |
| Model: | TDC 286TS40U2B |
| Controller : Eaton(UL/FM) |
Standards
NFPA20, UL, FM, EN12845,CCCF
Performance Ranges
UL : Q: 100-750GPM H:70-152PSI
FM: Q: 100-750GPM H:70-152PSI
CCCF: Q:15-45L/S H:0.6-0.9Mpa
NFPA20: Q: 100-3000GPM H:40-200PSI
NMFIRE is the first company in the world who has UL / FM fire pump and UL listed diesel engine.
Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc. Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.
-
Five Advantages of CNP NM FIRE
①The late-mover advantage of products, we R&D better fire products than other Suppliers; ②Have the most complete and all series of fire pump models; ③Have listed diesel engines with self-owned brand--- NM FIRE； ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services； ⑤Shorter delivery time.
Q1.Do you have the UL-LISTED Fire Pump Sets? Yes, We have the UL/FM and NFPA standard Fire Pump Sets. Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ? Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together. Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ? You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together. Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price. For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep. For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep. If you need Jockey Pump or other accessories,please tell us together.
1. Reply within 24 hours. 2. High-quality products and the most reasonable price 3. Data and chemical technology support.
